MPP Capacitors - Metallized Polypropylene Capacitors
As a quality-oriented organization, we provide our clients excellent quality Metalized Polypropylene Capacitor that are manufactured using high grade raw material. The offered capacitors are available in different designs and other related specifications, in order to meet the variegated expectations of our valuable customer. Our provided range is rigorously tested by the team of our professionals. Furthermore, our clients can avail these capacitors from us at market leading prices.

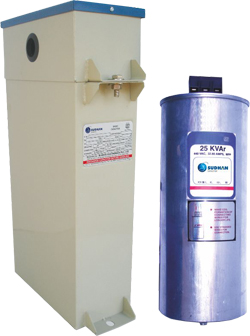

'SUDHAN' MPP Capacitors are manufactured using imported Zn-Al Metallised Polypropylene film with reinforcement. This special construction enables capacitor to withstand higher switching surges. In case of Oil filled capacitors assembly is done in CRCA container and impregnated with NPCB oil. For dry type capacitors assembly is done in Aluminium can containers and are impregnated with polyurethane resin / wax. These modules have pressure interrupter arrangement for safety against bursting both designs are available in normal duty and heavy duty applications.
We provide MPP Capacitors, Metallised Polypropylene Capacitors, and Metallized Polypropylene Capacitors across Pune, Maharashtra, India, ensuring reliable performance for diverse industrial applications.
Features :
- High efficiency
- Trouble-free operation
- Low maintenance
| TECHNICAL SPECIFICATION : | |
|---|---|
| TYPE | SUH (Circular) |
| Standard Voltage Range | 415 / 440 / 480 / 525 / 600 VAC |
| Other Voltage Range | Up to 1000 VAC |
| Frequency | 50 Hz / 60 Hz |
| Impregnant | NPCB |
| Insulation Level | 3 KV |
| Dielectric Loss | < 1.0 watt / kVAr |
| Capacitor Loss | < 2.0 watt / kVAr |
| Connection | 3 Phase, Delta |
| Safety | Self Healing Property |
| Life Expectancy | 9,00,000 Hrs (Normal Duty) 1,25,000 Hrs (Heavy Duty) |
| Max. Permissible Over Voltage |
110% of Vn (Normal Duty) 120% (Heavy Duty) |
| Max. Permissible Over Current |
130% of In (Normal Duty) 130% (Heavy Duty) |
Upto 25 KVAR single unit & above 25KVAR banking will be provided.
